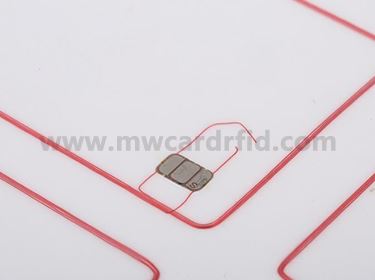

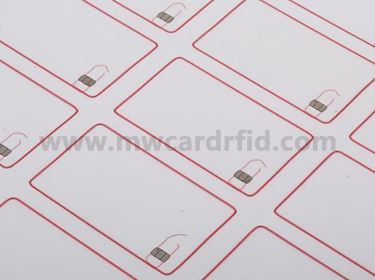

RFID PRE-LAMINATED INLAY
We produce high performance RFID PRE-LAMINATED INLAY for contactless and also dual interface card production by our production line as we have the advantage of high capacity and competitive cost .The working frequency cover 125KHZ and 13.56MHZ and 860-960MHZ.The working frequency and layout of antenna can be customized design
Capacity for RFID Prelam inlay :2million pcs per month
|
Antenna Type |
Copper Wiring antenna and Etching Aluminum |
|
Antenna Format per sheet |
1×5,2×5,3×6,5×5,3×8,3×7,3×10,6×8. |
|
Color |
White ,half transparent ,whole transparent or any color for PVC |
|
Core Material |
PVC ,PETG and Composite(PVC and PETG)
|
|
125kz Chip Available: |
EM4200,TK4100, T5577, Hitag 1,Hitag 2, HTS256, HTS2048, Hitag UR064 or other consigned chips |
|
13.56Mhz Chip Available: |
NXP Mifare1K S50,Mifare 4K S70 |
|
NXP Mifare Plus EV1 2K/4K,Mifare Plus S 2K/4K,Mifare Plus SE 1K ,Mifare Plus X 2K/4K, with 4byte or 7byte UID |
|
|
ICODE SLI(1Kb) ,ICODE SLIX(1024bits) ,ICODE SLI-S(2Kb)ICODE SLI-L, |
|
|
NXP Ultralight EV1 256bits and 1024bit,Utralight C, |
|
|
NTAG203/213/215/216 |
|
|
Desfire EV1 &EV2 2k/ 4K/8k |
|
|
Mifare1K Compatible: FM11RF08(F08)/Huada S50 |
|
|
Mifare 4k Compatible: FM11RF32/Huada S70 |
|
|
Or other customized chips |
|
|
UHF Available |
Ucode G2, Ucode7 ,Ucode 6B ,Alien Higgs-3, Higgs-4，Monza 4D、4E、4QT，Monza5, |
|
Dual band Available |
LF+HF+UHF or optional |
|
Capacity |
2million pcs for ISO card size per month |
|
Package |
Carton size made by layout and size of sheet |

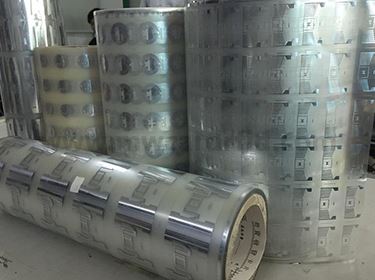

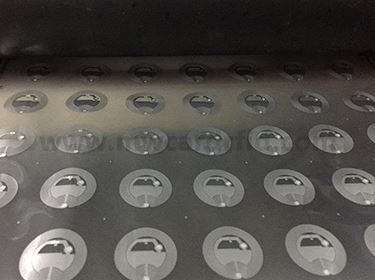

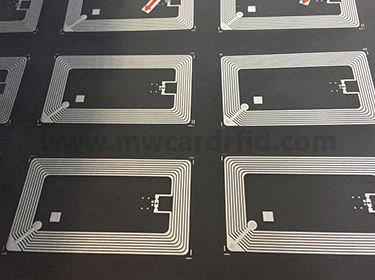

RFID DRY INLAY :
We own the world classic production lines to achieve the biggest capacity in Asia to product the RFID dry inlay with high performance and competitive cost .
Our production machinery :
1 - Muehlbauer FCM10K x 5
2 - Muehlbauer TAL10K x 1(upgraded)
3 - Muehlbauer TAL15K x 7
4 - Datacon FC8800 x 2
80million pcs per month .
|
Antenna Type |
Etching Aluminum |
|
Color |
Transparent |
|
Core Material |
PET
|
|
13.56Mhz Chip Available: |
NXP Mifare1K S50,Mifare 4K S70 |
|
NXP Mifare Plus EV1 2K/4K,Mifare Plus S 2K/4K,Mifare Plus SE 1K ,Mifare Plus X 2K/4K, with 4byte or 7byte UID |
|
|
ICODE SLI(1Kb) ,ICODE SLIX(1024bits) ,ICODE SLI-S(2Kb)ICODE SLI-L, |
|
|
NXP Ultralight EV1 256bits and 1024bit,Utralight C, |
|
|
NTAG203/213/215/216 |
|
|
Desfire EV1 &EV2 2k/ 4K/8k |
|
|
Mifare1K Compatible: FM11RF08(F08)/Huada S50 |
|
|
Mifare 4k Compatible: FM11RF32/Huada S70 |
|
|
Or other customized chips |
|
|
UHF Available |
Ucode G2, Ucode7 ,Ucode 6B ,Alien Higgs-3, Higgs-4，Monza 4D、4E、4QT，Monza5, |
|
Capacity |
80million pcs per month . |
|
Package |
Carton |
